For the models: Mini - Blue Nile - Big River

Turn the aerator in your tap.

Take the attached water valve and the tube from the box.

Attention: Should your tap dispose about an internal thread, use please the attached adaptor ring with thread and screw the ring in the adaptor.

Screw the valve with the hand on your tap (or on the adaptor on the tap).

Use in addition no tools. otherwise, the thread can be damaged.

Lead now the inflow tube to your filter.

You can put the filter on your rinsing or fasten by means of the attached holder to the wall.

Put now the tube into the filter so far as possible (patent fastener).

Turn up the cold water and pull out the button in the adaptor. Now the water flows by the filter.

By the first introduction you run off approx. 5 to 10 litres of water to purge the filter once and the carbon filter dust flushes out.

The least hydraulic pressure should amount to 1.5 bar. Should a low pressure device (boiler) be installed, you cannot connect this filter!

Important notices:

- Filter no hot water, because the filter is suitable only for temperatures to 24°C.

- Removal of the tube from the water filter: The tube can be removed only if you press the small

  protection ring against the filter and pull out at the same time the tube, otherwise you damage the

  patent fastener.

- The filter can postdrip a little after use, hence, move please to the rinsing, or mount it directly about it.

For the models: Lena - Amazon

We recommend the installation by a plumber:

Turn in the water on the corner valve (cold water pipe).

Cut the cold water pipe after the corner valve.

Put the squeeze connection (2 pieces) on both ends of the split water pipe and tighten the nuts. On both other sides you turn up both Jon guest connections on the thread piece.

You put the attached tube in both Jon guest connections.

You can shorten the tube arbitrarily (cut).

The water entrance in the filter is below, the water exit on top.

After all connections are produced, please put the water hose so far as possible into the filter or into the Jon guest connections.

Turn up now the corner valve again and check the density of the connections.

By the first introduction you run off approx. 15 to 20 litres of water to purge the filter once and the carbon filter dust flows out.

The least hydraulic pressure should amount to 2 bars. Should be installed a low pressure device (boiler), please call a plumber for the purpose of installation of a check valve.

Assembly of the separate tap

Important notices:

- Filter no hot water, because the filter is suitable only for temperatures to 24°C.

- Removal of the tube from the water filter: The tube can be removed only if you press the small

  protection ring against the filter and pull out at the same time the tube, otherwise you damage the

  patent fastener.

For the models: Mediteranean - Atlantic - Pacific - The Big One

We recommend the installation by an expert:

The filters must stand on a firm, straight subsoil.

1. Put the filter upright and unscrew the white locking lid.

2. Shake the filter something to distribute the carbon granulate material evenly.

3. Turn the Fleece disc about the pipe in the filter opening, and push it down on the carbon granulate material.

   The smooth side should point down. Press the Fleece disc firmly on the granulate material.

4. Fill now the KDF-granulate material from the provided bottles evenly distributed in the filter.

   Shake, perhaps, the filter something, so that the KDF-granulate material evenly lies.

5. Remove the orange cap from the attached tube.

6. Put the fastener with both connection openings by hand on the tube or filter.

7. Pay attention, on this occasion, to the fact that the thread is properly put on, and screw this shut.

8. Turn with the attached key the filter lid carefully approx. from 1/8 to 1/4 rotation further, until the

    density is given.

9. To the attention with F02 Atlantico/F04 Pacifico / F06 The Big One:

    Put on the black cover.

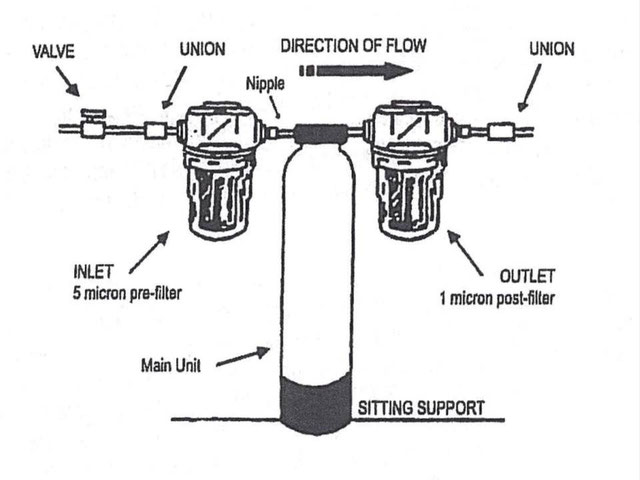

10. Now the water pipes or pre- and postfilters can be connected. The water admittance is marked.

11.To the attention with F02 Atlantico/F04 Pacifico / F06 The Big One:

    Attach now the white plastic covering.

12.The assembly of several filters side by side is to be carried out in parallel.

Important notices:

• Legal regulations are to be followed.

• Stopcocks are to be installed to make easier the change of prefilter and postfilter.

• The filter should be installed in such a way that he is accessible to the change of prefilter and

  postfilter.

• By the introduction let run through 20 - 30 litres of water. Besides, the carbon filter dust

  becomes flushed out.

Change of prefilter and postfilter:
 • Put down the water and dismantle the filter.
 • Exchange prefilter and postfilter.
 • Install the new filters.
